Class ColourPicker missing things

rgb

Need properties for select Tab Index

Need properties for select number of rectangle color like Designer ColorPicker

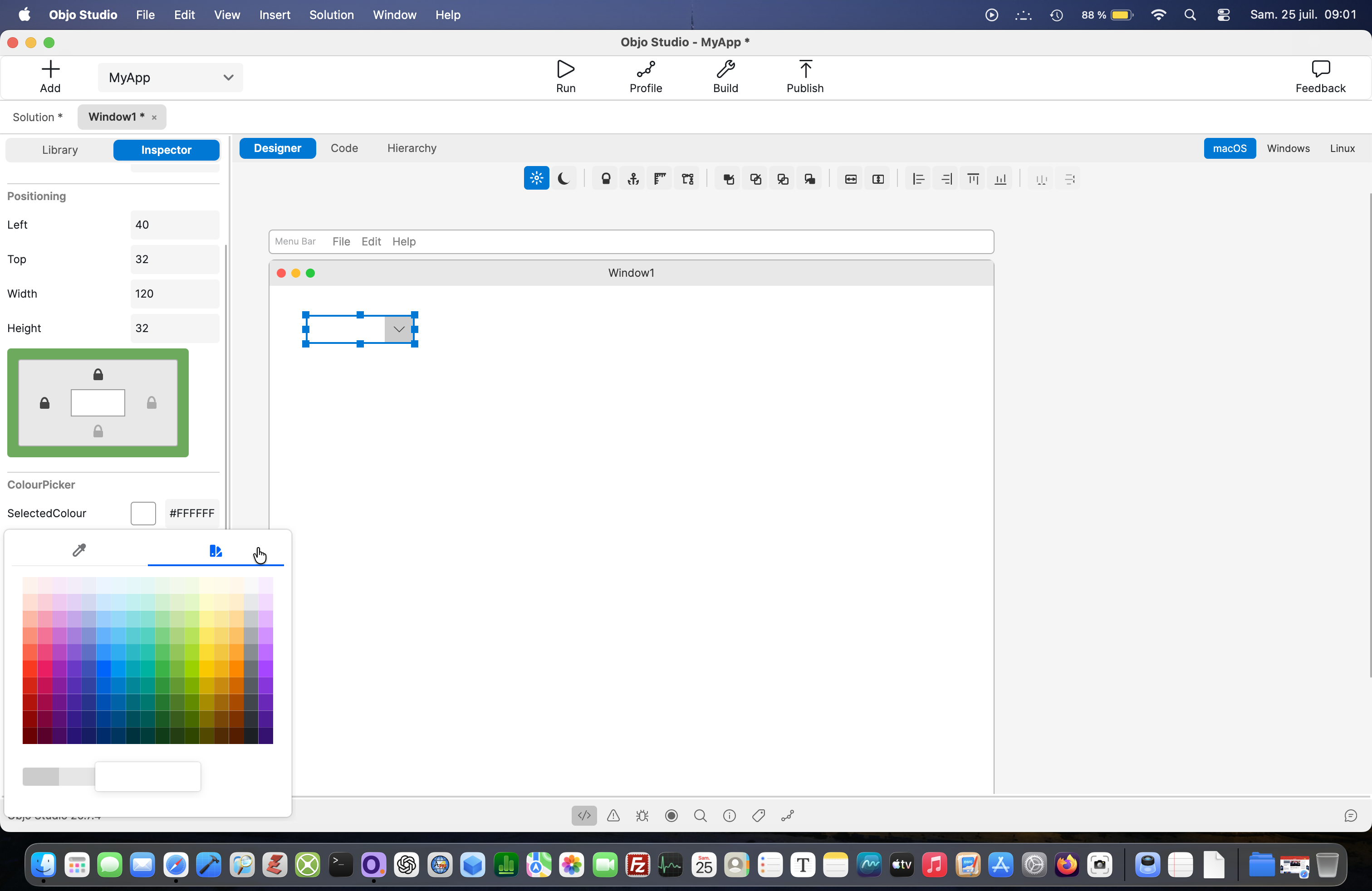

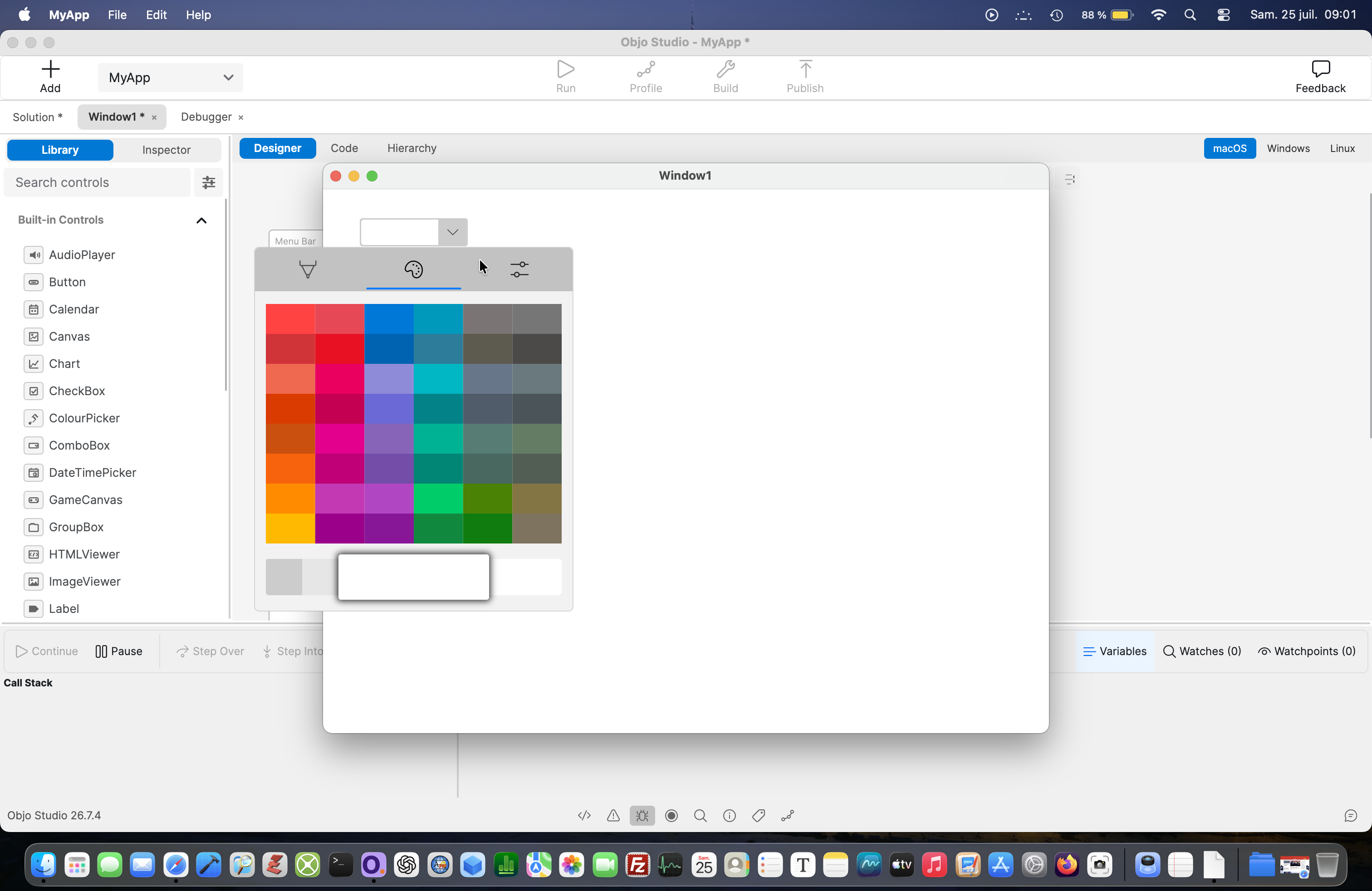

When open a ColourPicker when you select Tab 1 (Palette Color)

It's strange theirs important color are not in list colors:
RED rgb (255,0,0)
BLACK rgb (0,0,0)
YELLOW rgb(255, 255, 0)

Garry

Thanks for reporting this. All three points were valid and reproducible.

I’ve made the following changes for the next release:

ColourPicker.SelectedView now selects the Spectrum, Palette, or Components view.
ColourPicker.Palette provides Standard, Fluent, Material, Flat, and Sixteen-colour palette options.
The new Standard palette contains 187 swatches, including exact black, red, orange, yellow, green, blue, and white.
Objo Studio’s Inspector and runtime ColourPicker now use the same Standard palette by default.

For example:

Var picker As New ColourPicker

picker.SelectedView = ColourPickerView.Palette
picker.Palette = ColourPickerPalette.Standard
picker.SelectedColour = Colour.Red

The visual designer also exposes SelectedView and Palette, and saves both settings in the project.

https://feedback.objo.dev/feature/932
